Targets `ps1` and `ps2`: PlayStation and PlayStation 2

zinc build examples/breakout --target ps1   # PS-EXE + CD image (docker zinc/sdk-psx: PSn00bSDK)
zinc run   examples/breakout --target ps1   # runs it headless in PCSX-Redux, TTY -> stdout
ZINC_FRAMES=400 ZINC_SHOT=$PWD/examples/breakout/src/build/shot.bmp zinc run examples/breakout --target ps1
zinc test  --target ps1                     # conformance: PS-EXE output vs the fx12 sim oracle
zinc build examples/breakout --target ps2   # EE ELF with gsKit + libpad (docker zinc/sdk-ps2: ps2dev)
zinc run   examples/breakout --profile ps1  # host window with the ps1 profile (fx12, 320x240, 256 KiB heap)

The first build of each target builds its docker image (docker/sdk-psx, docker/sdk-ps2); both are x86_64 images (the SDKs only ship x86_64 Linux binaries), emulated on Apple Silicon.

What runs where

	ps1	ps2
output	`build/ps1/cmake/app.exe` (PS-EXE), `app.bin` + `app.cue` (bootable ISO 9660: `SYSTEM.CNF` + `PSX.EXE`), `app.elf`	`build/ps2/cmake/app` (EE ELF, loads at `0x100000`)
toolchain	PSn00bSDK v0.24 release (GCC 12.3 `mipsel-none-elf`, `-march=r3000 -msoft-float`)	ps2dev (GCC 15 `mips64r5900el-ps2-elf`, ps2sdk, gsKit)
numbers	fixed point Q20.12 (`fx12`), no FPU	`f32` (EE FPU)
text output	BIOS TTY (`putchar`/`printf`): PCSX-Redux, DuckStation and dev units show it	`printf` on the EE (ps2link/PCSX2 console)
screen	shared software rasterizer → 15 bpp → `LoadImage` into VRAM, damaged rows only, two framebuffers swapped at VSync	rasterizer → CT32 texture in RAM → gsKit texture manager upload → sprite, double-buffered, vsync
input	pad 1 through the BIOS pad driver (`InitPAD`)	pad 1 through libpad (`rom0:SIO2MAN`, `rom0:PADMAN`)
clock	VSync counter + hblank counter (~64 µs)	`clock()`
frame step	virtual 1/60 s per frame (deterministic, like the sim)	same
`zinc run`	PCSX-Redux `-cli -testmode -interpreter` with OpenBIOS (no Sony BIOS), stdout = TTY between the HAL markers, exit code from the emulator	builds only (see below)

Buttons: Cross = A, Circle = B, Square = X, Triangle = Y, L1/R1 = L/R, Start, Select, d-pad (Btn.* in zinc:gfx).

A zinc run build quits after ZINC_FRAMES frames (default 60, baked in at build time since a console program cannot read the host environment); zinc build / zinc export builds run until the console is switched off.

Verification status (2026-09-28)

check	ps1	ps2
conformance suite (`zinc test`)	9/9 byte-identical with the fx12 sim, run as PS-EXEs in PCSX-Redux (3 skipped: `ink`, `modules`, `modules_esp32` use modules not available on ps1)	builds; not run
`examples/hello`, `examples/breakout`	build and run in PCSX-Redux; hello’s output matches the sim; breakout renders (screenshots below)	build; ELF checked with binutils (ELF32 R5900 `EXEC`, one `LOAD` at `0x100000`, gsKit/libpad symbols linked)
display	verified in PCSX-Redux (framebuffer read back through its Lua API)	unverified (needs PCSX2 + BIOS or hardware)
pads	not exercised (headless runs press nothing; breakout’s attract mode plays itself)	unverified
real hardware	not tried	not tried
CD image	built by mkpsxiso; not booted	—

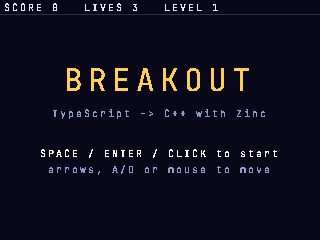

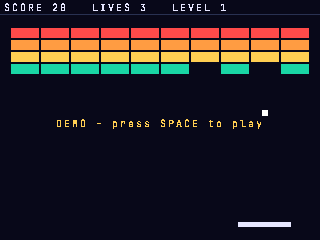

breakout title on PS1 (PCSX-Redux) breakout attract mode on PS1 (PCSX-Redux)

zinc run uses PCSX-Redux’s interpreter: its x86-64 dynarec, itself running under Docker’s x86-64 emulation on Apple Silicon, sent one conformance executable (text_react) into garbage code depending on code layout, while the interpreter ran the same file correctly. Not investigated further (it may not happen on an x86-64 host).

Speed: breakout runs 400 frames in 1168 vblanks in PCSX-Redux (about 20 fps; its cycle timing is approximate). The rasterizer is float code on a soft-float CPU and redraws the bounding box of everything that changed, which here spans most of the screen; a fixed-point path or GPU primitives for plain rectangles and text would be the fix.

Memory budgets

PS1 (2 MiB RAM, 1 MiB VRAM): the executable (code + fonts baked by the build) + static pools + the TLSF heap.

	hello	breakout
text + rodata	50 KiB	231 KiB (≈ 80 KiB of baked glyphs)
data + bss	11 KiB	137 KiB (two 512-command draw lists 72 KiB, band buffers 40 KiB)
TLSF heap (`ZRT_HEAP_BYTES`, profile `heap`)	256 KiB	256 KiB
left for the stack and the SDK’s malloc (after the 64 KiB kernel area)	≈ 1.6 MiB	≈ 1.3 MiB

The draw-list and pool sizes are set in targets/ps1/ps1.cmake (512 commands, 4 KiB text, 2 K points per frame); commands past the limit are dropped. VRAM holds two 320x240 15 bpp framebuffers (300 KiB). The heap size can be raised per project: "targets": { "ps1": { "heap": 524288 } } in zinc.json.

PS2 (32 MiB RAM, 4 MiB GS memory): 16 MiB TLSF heap; breakout is 360 KiB of code + 1.1 MiB bss (the default 8192-command draw lists). GS memory: two 640x448 CT24 framebuffers + one 640x448 CT32 texture, at most ≈ 3.4 of the 4 MiB.

Running on a console or in a GUI emulator

ps1. Load app.exe in PCSX-Redux (File > Open, with its OpenBIOS or a BIOS dump), DuckStation (needs a BIOS dump) or no$psx; or mount app.bin/app.cue. On hardware: send app.exe over serial with a loader (Unirom + nops, or a PSIO/XStation menu), or burn app.bin — the image carries no license sector, so a stock console needs a modchip or a swap-based boot. The TTY is visible in the emulators’ console windows or over Unirom’s serial link.

ps2. PCSX2 needs a BIOS dumped from your own console (Sony’s BIOS is not redistributable, so it cannot be put in the image): Settings > BIOS, then System > Boot ELF > app. On hardware: copy app to a USB stick and start it from uLaunchELF / wLaunchELF, or push it over the network with ps2link + ps2client execee host:app (the TTY then shows up in ps2client). There is no BIOS-free runner in zinc run: PCSX2 has no HLE BIOS. The Play! emulator boots ELFs without a BIOS (HLE) and has a headless runner that captures the EE’s stdout (tools/AutoTest), so it is the candidate for zinc run --target ps2. Tried on 2026-09-28: AutoTest builds in the ps2dev image (x86_64) but segfaults at start under Docker’s x86_64 emulation on Apple Silicon; a native arm64 build stops on x86-only -msse flags in its CMake setup. Not wired; worth retrying on an x86_64 Linux host.

Implementation map

docker/sdk-psx/Dockerfile: PSn00bSDK 0.24 (toolchain, libs, elf2x, mkpsxiso) + PCSX-Redux (x86_64 AppImage, extracted), both pinned by sha256; Ubuntu 26.04 because the emulator build needs glibc 2.43.
targets/ps1/hal_ps1.cpp: HAL (TTY, VSync clock, pad, VRAM upload, PCSX-Redux exit/screenshot registers).
targets/ps1/crt_ps1.cpp: what PSn00bSDK’s libc lacks: exact number ↔ string conversions and a libm subset. c++ -std=c++17 -O1 targets/ps1/crt_check.cpp && ./a.out checks them against the host libc.
targets/ps1/ps1.cmake, iso.xml, shot.lua: link setup (libpsn00b, exe.ld, libgcc after libc), pool sizes, PS-EXE + CD image, the screenshot slot for PCSX-Redux.
targets/ps2/hal_ps2.cpp, targets/ps2/ps2.cmake: EE HAL, gsKit + libpad linking.
compiler/src/cli.ts: the ps1/ps2 entries of DOCKER (image, toolchain file, run command).
Decision: docs/decisions/0012-playstation-sdk-emulator.md.
