Zinc Next on the consoles: breakout on PSP, PS Vita, PS2 and 3DS (ZN-753)

examples/breakout runs unchanged on the four console cores (docs/targets/handhelds.md), in their emulators, driven by each console’s pad. Since 2026-10-17 it wears Kenney’s Puzzle Pack (CC0, examples/breakout/assets/kenney): bricks, paddle, ball and a starry background drawn as sprites by src/skin.ts; the rules are untouched, and src/render.ts keeps the original look (the prototype’s frames, breakout-mods).

What each console shows

Every picture below is the emulator’s own output, not the HAL’s frame: PPSSPP’s screenshot (PSP), PCSX2’s save-state screenshot of the GS output (PS2), and the framebuffer the display scans out, read back through the console’s own call (sceDisplayGetFrameBuf on the Vita, the 3DS buffer shown since the last swap). Vita3K and Azahar have no screenshot a script can ask for (a key in their window), and window captures need the Screen Recording permission.

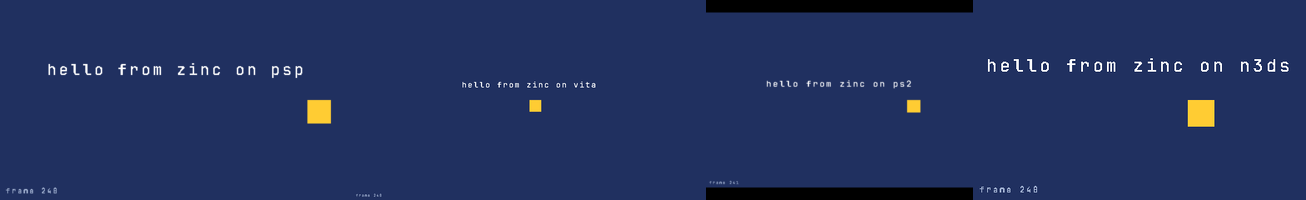

The console hello (targets/console/hello), PSP, Vita, PS2 (PAL BIOS: 640x512, the 448-row frame centred) and 3DS:

breakout’s pad session (tests/golden/breakout/pad.input: start, serve, move left and right, break bricks, lose a life, serve again), at frames 300, 600 and 900:

PSP, 480x272 (PPSSPPHeadless 1.20.4, software renderer):

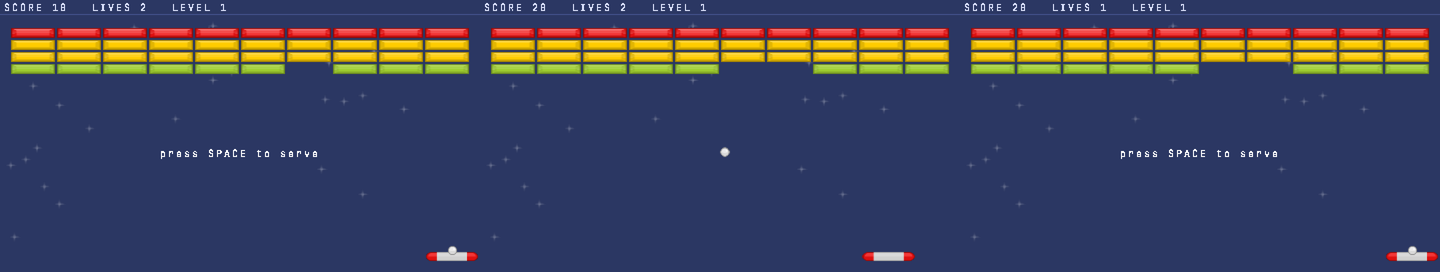

PS Vita, the program at 480x272 shown doubled on the 960x544 screen (zinc.json targets.vita; Vita3K):

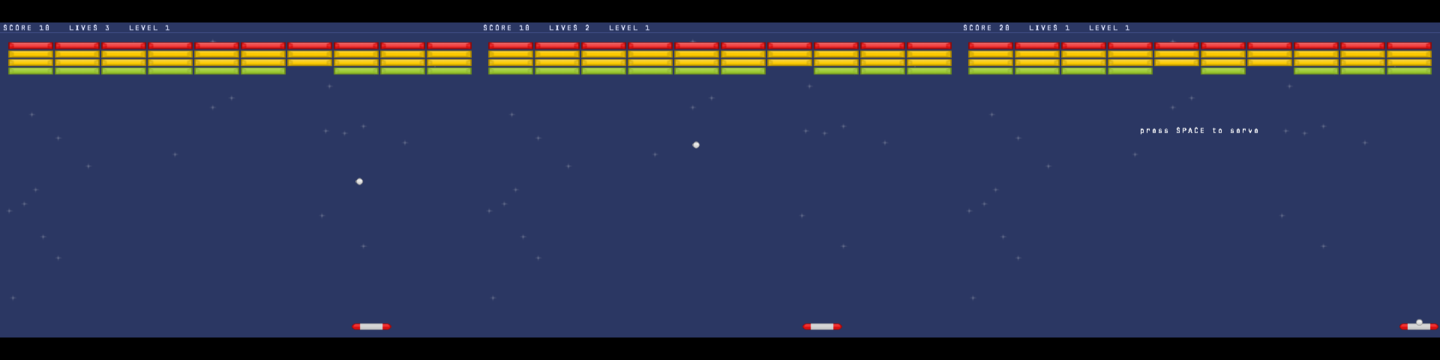

PS2, 640x448 in a PAL 640x512 picture (PCSX2 2.8.2, the owner’s BIOS):

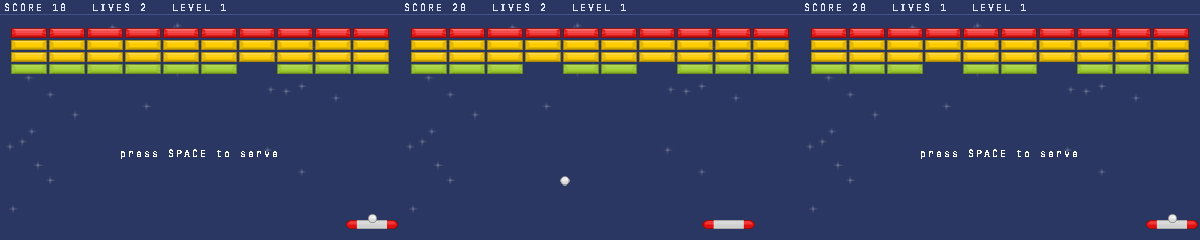

Nintendo 3DS top screen, 400x240 (Azahar 2126.2):

The last frame of the session has the same hash on the console as zinc run --interp with the console’s profile, size and script (tests/golden/breakout/pad.hashes): PSP, Vita and 3DS byte for byte; the PS2 ends on the same game (score, lives, bricks, paddle), its pixels within one or two colour steps (no pixel differs by more than 3%): the EE’s FPU is not IEEE (it rounds toward zero, has no denormals), which the raster’s blends feel. Its own hash is the golden’s fourth column.

Frame times

ZINC_PROFILE=1 built into the core, 900 frames of the session, in milliseconds. work is the program and the draw list (input, game, paint, diff); present is the software raster of the damaged rows and the copy to the console’s framebuffer. Clocks: the emulated clock on PPSSPP (333 MHz), PCSX2 and Azahar, so these are console times as far as the emulator models the CPU’s speed (PPSSPP and Azahar estimate cycles, they are not cycle-exact); Vita3K runs the ARM code on the host and its clock is the host’s, so its numbers are the Mac’s, not a Vita’s.

In play only the rows that change are rastered (the ball, the paddle, a brick): the p50 of present is under a millisecond everywhere. The p99 is the frames that redraw everything (the title, the wall of a new level): 320,000 pixels on the PS2 through one EE core and a texture upload. The GE, GXM and PICA replays (later tasks) take that off the CPU.

PPSSPP’s GPU backend does not change these numbers: the core writes its pixels to VRAM itself and the backend only shows them, so the “software and GPU modes” of PPSSPP give the same frame and the same times; the run above uses --graphics=software.

What each port needed

• All: a built-in pad session (tools/build-console-core --input, the pad/padup lines of a ZINC_INPUT script, held on top of the real pad) and environment (--env ZINC_PROFILE=1 ZINC_FRAMEHASH=last ZINC_DETERMINISTIC=1); the analog stick (circle pad) as the d-pad; the text screen for a program that ends with nothing drawn; tools/console-demos for the copies a person plays (no frame budget, a Vita title id per demo).
• PSP: nothing beyond the above; the screenshot is cropped to 480 columns (the VRAM stride is 512).
• Vita: a surface smaller than the screen is shown scaled by a whole factor and centred (breakout at 480x272 doubled: its 8x8 text is readable); the ARM clock raised to 444 MHz; the shot read back from sceDisplayGetFrameBuf. Vita3K does not show newlib’s stdout and drops repeated lines.
• PS2: the frame centred and the screen cleared around it (a PAL BIOS gives 640x512: the 64 rows under a 448-row frame showed old video memory); hal_env reads the environment; a test build keeps its last frame on the screen after zinc:exit so PCSX2’s save state holds it; the DualShock 2 set to analog mode for its stick. The owner’s black screen was the one-line text program: it drew nothing.
• 3DS: the top screen is double-buffered and the HAL wrote only the damaged rows into the buffer being drawn, so each buffer missed the other frame’s changes (a moving object left a ghost every other frame); each buffer now takes every row changed since it was last shown.

Kenney skin

examples/breakout/assets/kenney: eleven PNGs of the Puzzle Pack 1.1 (https://kenney.nl/assets/puzzle-pack-1) and its License.txt (CC0). The bricks keep their size (64x32 sprites drawn at the rules’ 44x10 on the PSP), the ball sprite is drawn 2 px larger than its 5 px hitbox, the paddle 2 px taller. No sound: the console cores have no audio yet, and zinc:audio is a plugin the console cores do not load (Kenney’s “Interface Sounds” go in when they do). The prototype’s frozen breakout frame is no longer compared (manifest.json skip row, the owner’s choice); breakout-mods still draws render.ts and is compared.

Files for the owner

~/Documents/psp/breakout/EBOOT.PBP, ~/Documents/vita/breakout.vpk (title “Breakout”, ZINC00002), ~/Documents/ps2/breakout.elf, ~/Documents/3ds/breakout.3dsx, and the hello beside them (zinc-hello, ZINC00001). Controls: the d-pad or the left stick (circle pad) move the paddle, Cross (A on the 3DS) or START starts and serves. Rebuild them with tools/console-demos examples/breakout breakout --title Breakout --id ZINC00002.

Hardware demos: every part of each console (ZN-759)

examples/hardware-psp, hardware-vita, hardware-ps2 and hardware-n3ds show each part of the console live, one screen each, with Kenney’s Input Prompts and Puzzle Pack (CC0, each project’s assets/kenney); START and SELECT move between the screens, and a line in orange says what the console (or its emulator) does not give. The parts are zinc APIs every target has (docs/targets/handhelds.md, “Hardware”): zinc:gfx’s gamepad 0, touch points and windows, zinc:audio, zinc:storage and zinc:hardware, so the same screens run on a desktop (zinc run --simulate psp examples/hardware-psp). The pictures below are the emulators’ own (as for breakout), from a pad session built into the core (tools/build-console-core --input): each shot is the last frame of a session that goes to that screen and presses its buttons.

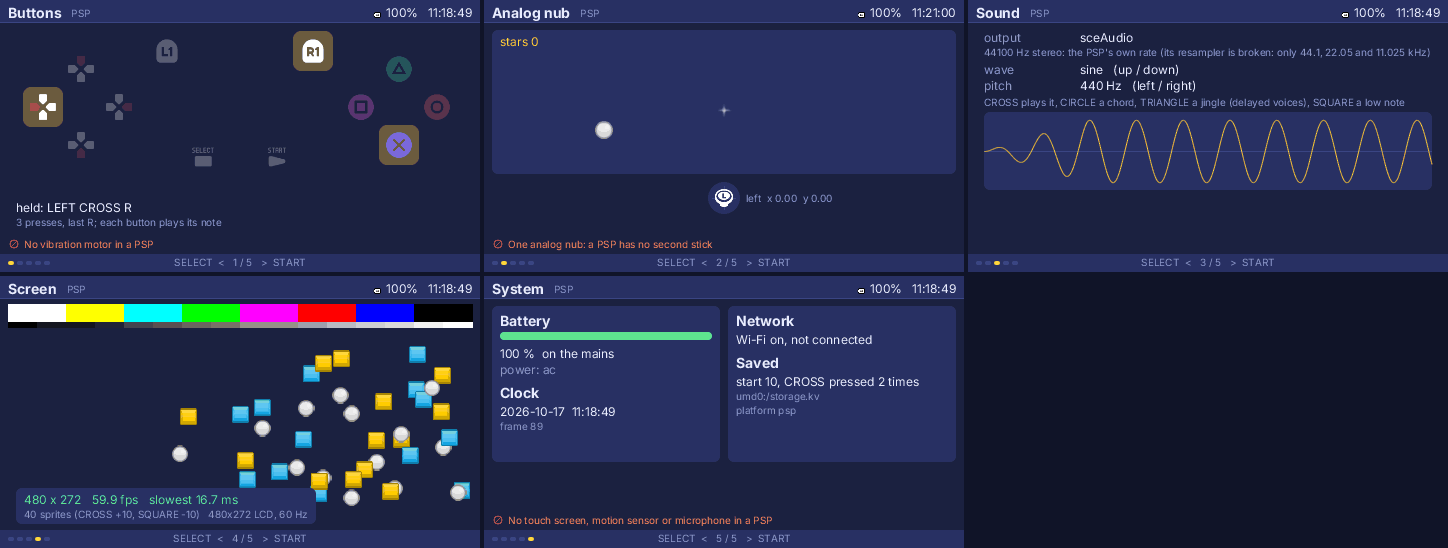

PSP (PPSSPPHeadless 1.20.4)

Buttons (LEFT, CROSS and R held), the analog nub, the sound (sceAudio at 44.1 kHz, the samples of the last tone), the screen (40 sprites at 59.9 fps), the system (battery and mains from PPSSPP, the Wi-Fi switch, the clock, a counter saved with zinc:storage):

Controls in PPSSPP: its own keyboard or gamepad mapping (Settings, Controls); the nub is a gamepad’s left stick there.

Nintendo 3DS (Azahar 2126.2, New 3DS)

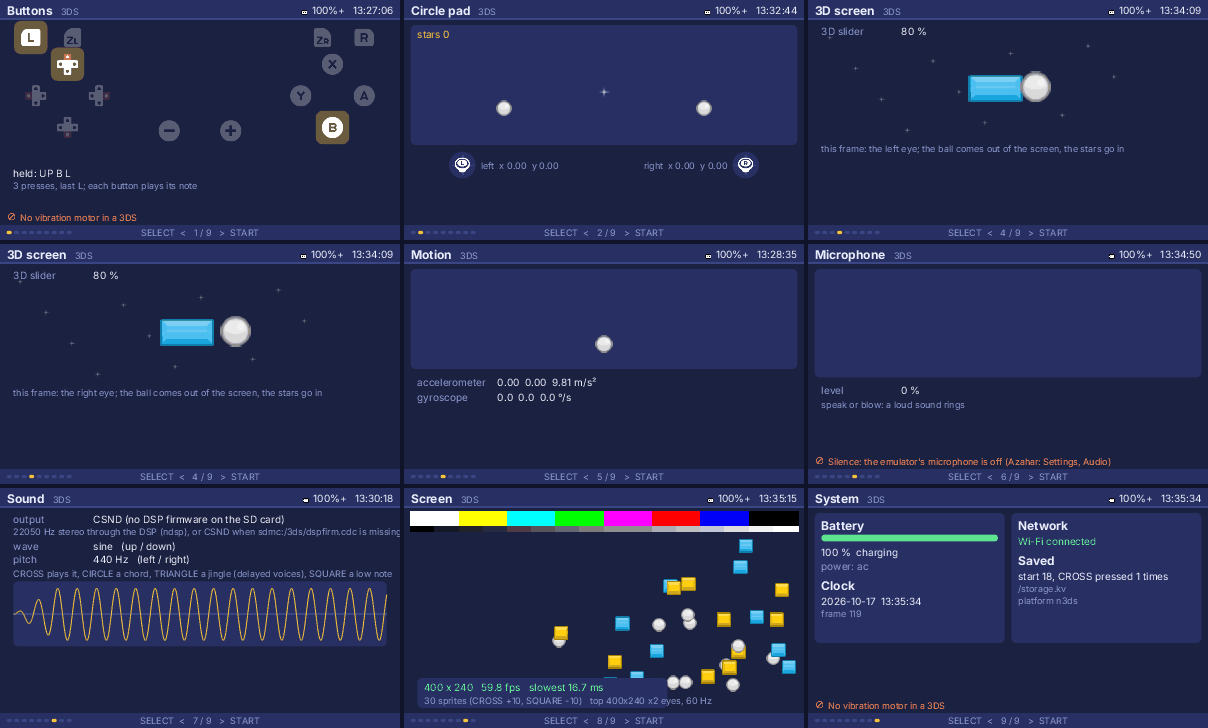

Top screen: buttons (B, UP and L held), the circle pad and the C-stick, the 3D screen’s left and right eyes (the 3D slider at 80 %: the ball comes out of the screen, the stars go in), motion, the microphone, the sound (CSND), the screen (30 sprites at 59.8 fps), the system:

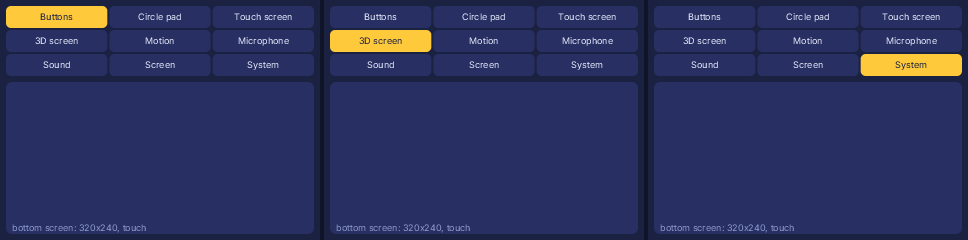

The bottom screen is the program’s zinc:gfx window: the screens’ names to tap and a pad to draw on with the stylus:

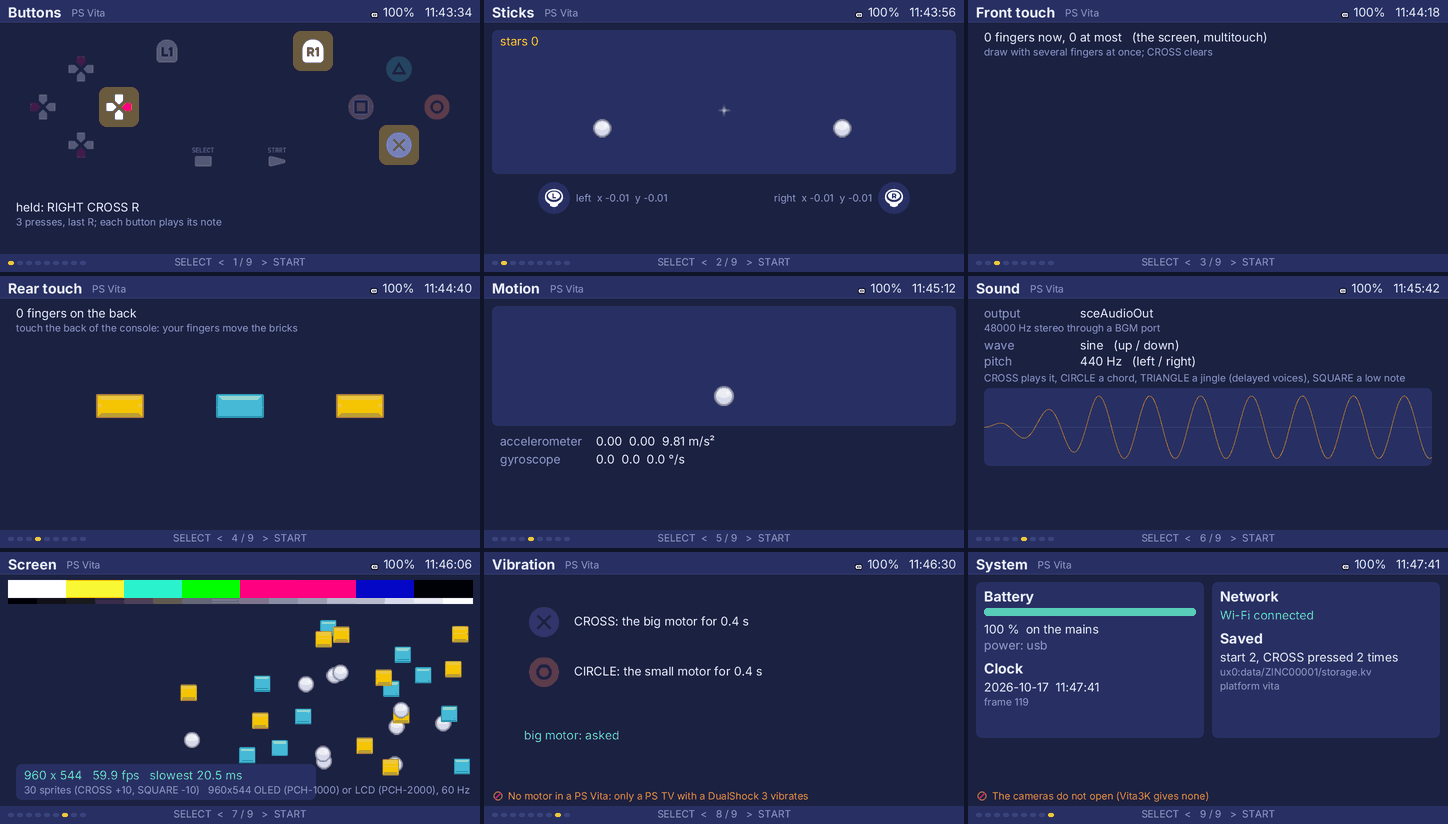

PS Vita (Vita3K, the owner’s firmware and settings by copy)

Buttons (RIGHT, CROSS and R held), both sticks, front touch, rear touch, motion, the sound (sceAudioOut at 48 kHz), the screen (30 sprites at 59.9 fps on the Mac’s clock), vibration, the system (battery, Wi-Fi, clock, a counter saved in ux0:data/<title id>/):

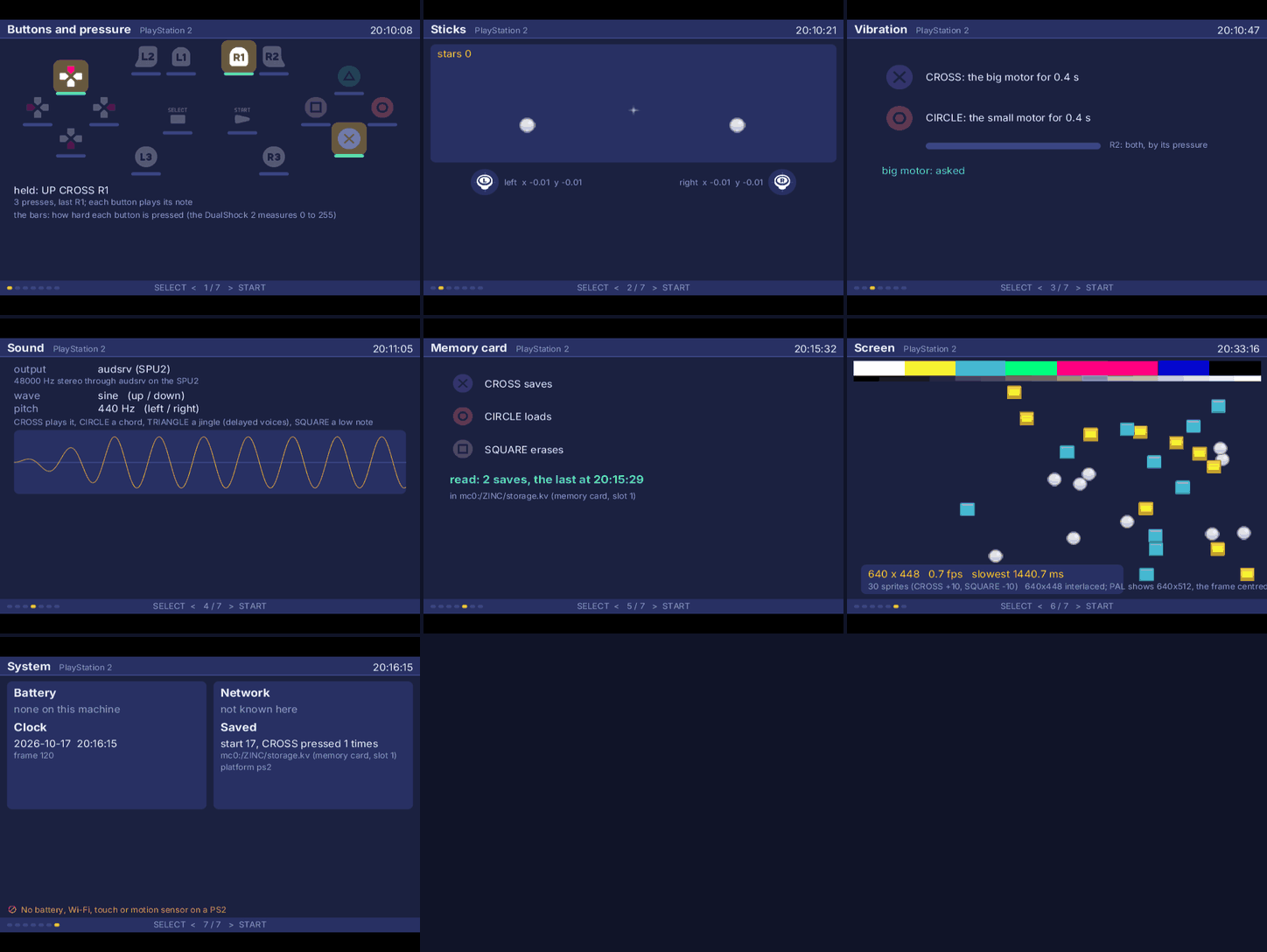

PlayStation 2 (PCSX2 2.8.2, the owner’s BIOS, the runner’s own data folder)

Buttons with their pressure bars (UP, CROSS and R1 held), both sticks, the motors, the sound (audsrv on the SPU2), the memory card (saved, then read back from mc0:/ZINC/storage.kv), the screen, the system:
